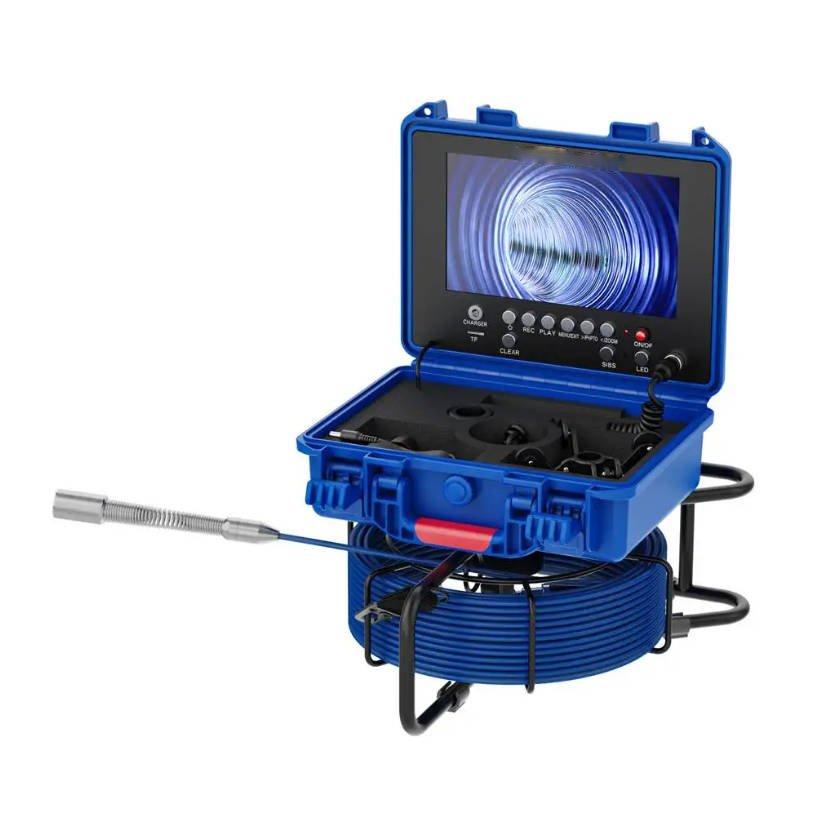

Sewer Camera 9″ AHD Video Screen Diameter 17mm Stainless Steel Probe SRP90-D17
9 inch AHD video screen, with meter meter, with WIFI hotspot function Support Android and Apple system Distance about 80M, diameter 17mm stainless steel probe, HD 1080P, lens angle 145 degrees, 20m/30m/50m pipe borescope, 4500MA built-in battery, with power display, 8 white light, with camera protective cover 2 kinds, send 16G card. 5MM Blue Cable.20m pipeline endoscope, 2,600mAh built-in battery with power indication, 8 white LED lights, comes with two types of camera protective covers, 16G SD card included. 5mm yellow cable with meter markings.
Models Available
| Name | Weight (kg) | Length (cm) | Width (cm) | Height (cm) |
|---|---|---|---|---|
| SRP90-D17-L20 | 5 | 39 | 33 | 25 |
| SRP90-D17-L30 | 5.5 | 39 | 33 | 25 |
| SRP90-D17-L50 | 6.5 | 39 | 33 | 25 |

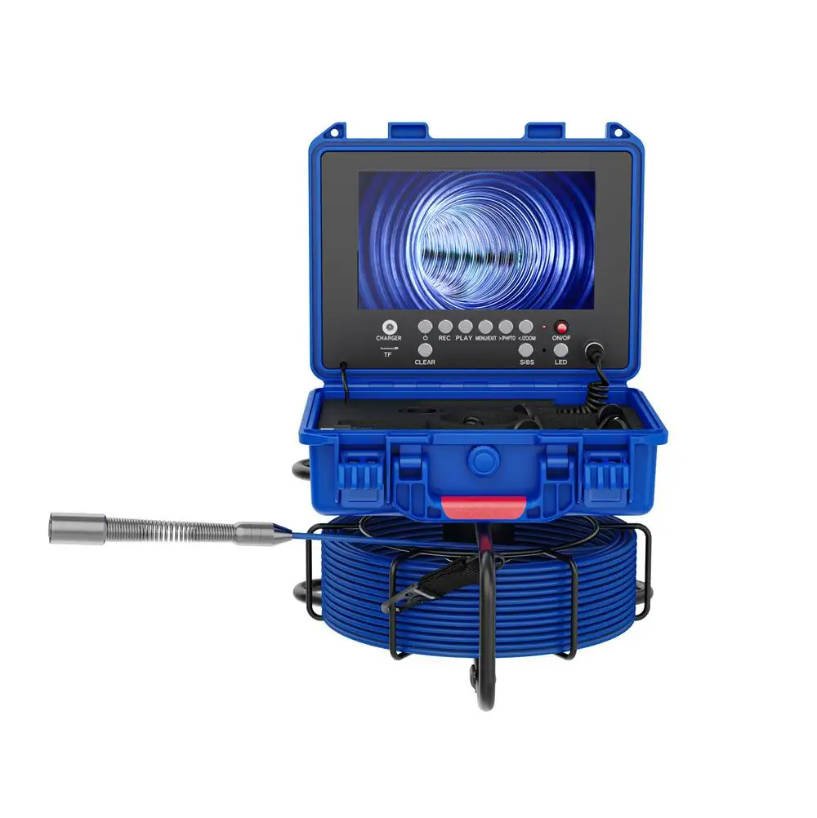

SEWER CAMERA
SRP90-D17
9 inch AHD video screen, with meter meter, with WIFI hotspot function Support Android and Apple system Distance about 80m, diameter 17mm stainless steel probe, HD 1080P, lens angle 145 degrees, 20m/30m/50m pipe borescope, 4,500mA built-in battery, with power display, 8 white light, with camera protective cover 2 kinds, send 16G card. 5mm Blue Cable.
Product Features

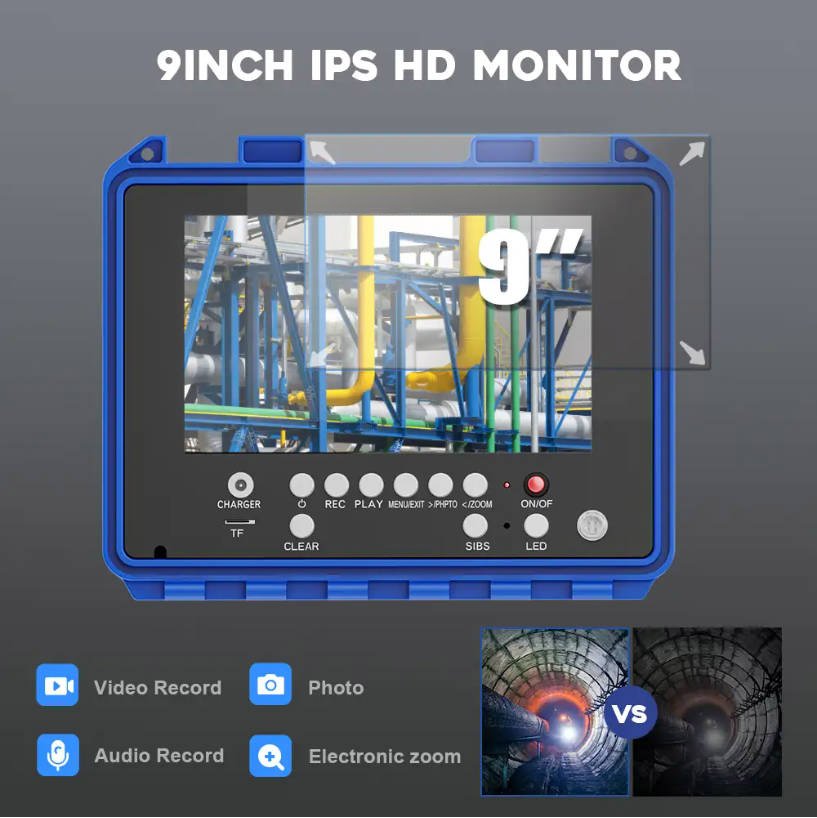

9 Inch IPS HD Monitor
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inch es color IPS LCD monitor with a sun-visor for outdoor inspections.
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

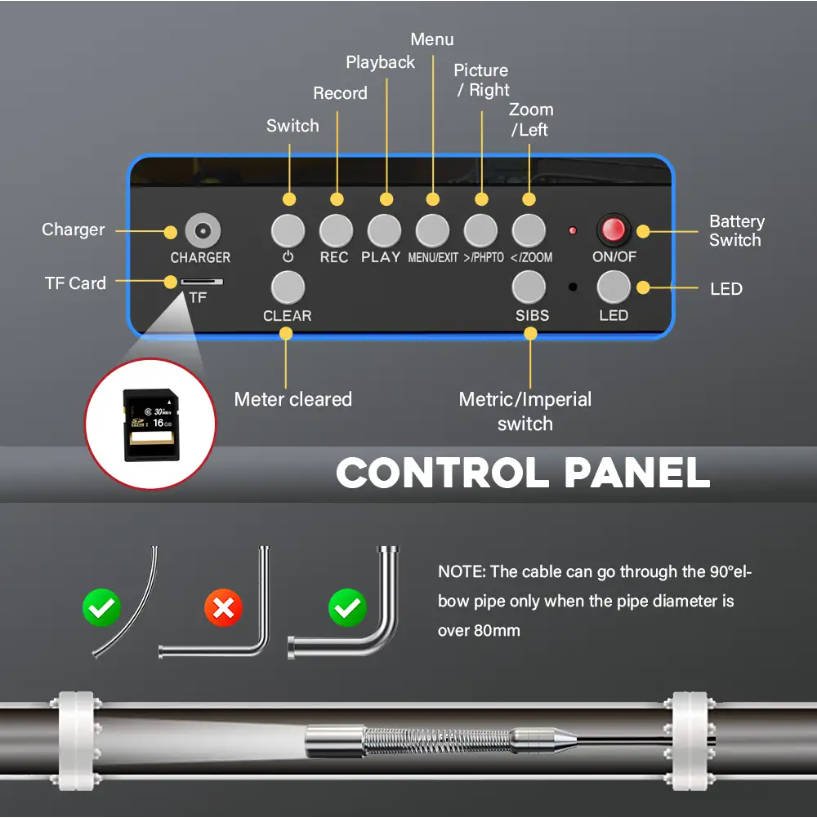

Control Panel & How to Use the Cable
The upgraded cable is more flexible than the previous version. However, it should not be bent at a 90-degree angle, as this may damage the cable. The cable is made with a 5 mm diameter fiberglass rod, offering excellent corrosion resistance, cold resistance, and tensile strength.

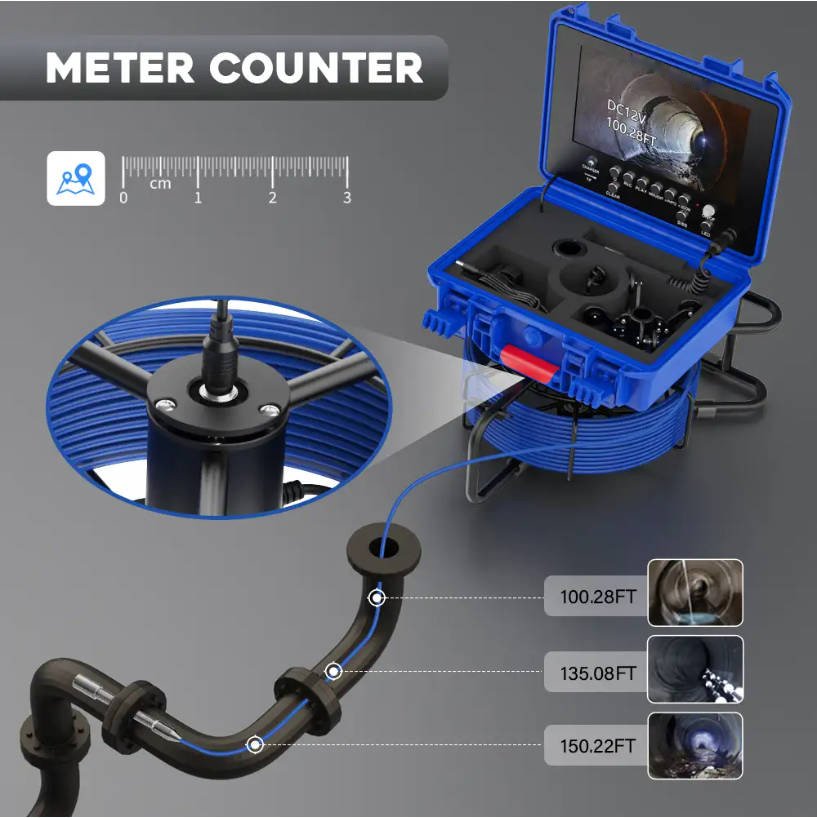

Meter Counter
Simultaneous display/cleared Metric and Feet.

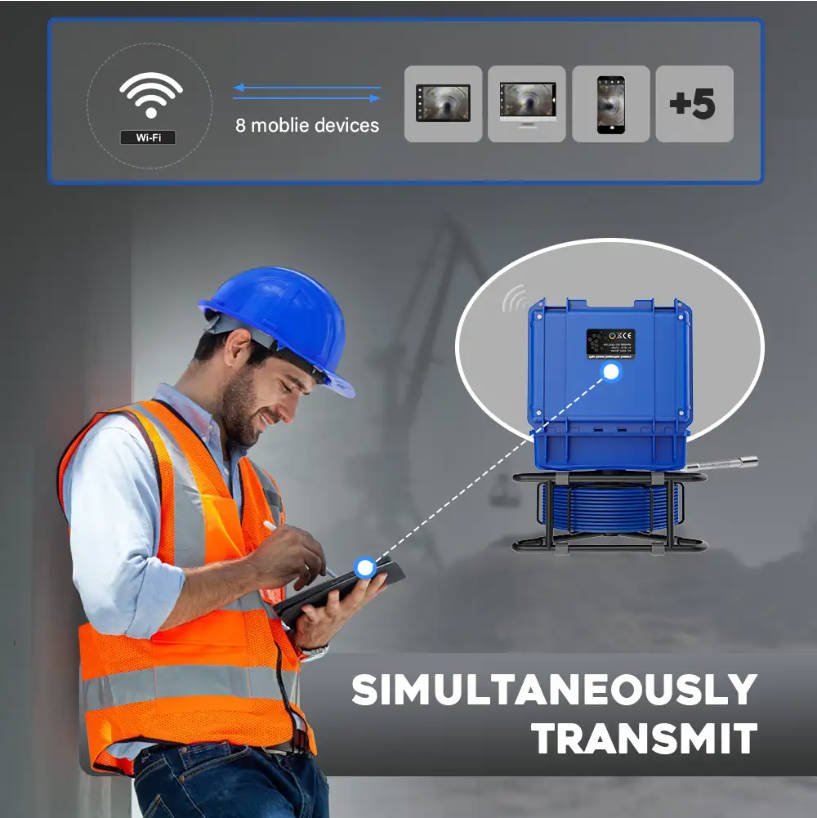

Wireless Signal Technology
This Pipe Sewer Inspection Camera Using 2.4G Wi-Fi wireless signal technology,FREE software App is downloaded from the App store and works with both Android and IOS systems,can do real time viewing,taking pictures,video recording. Signal Receiving distance,about 80 meters.

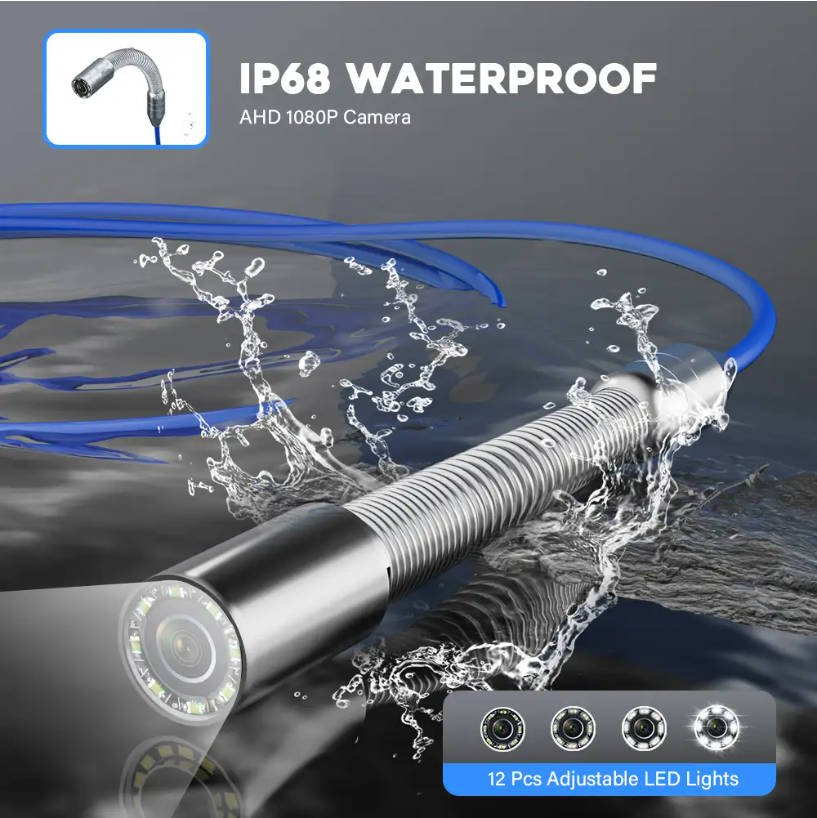

Waterproof & Night Vision
IP68 waterproof, with 12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area. Inspections will be seen more clearly in the dark environment.

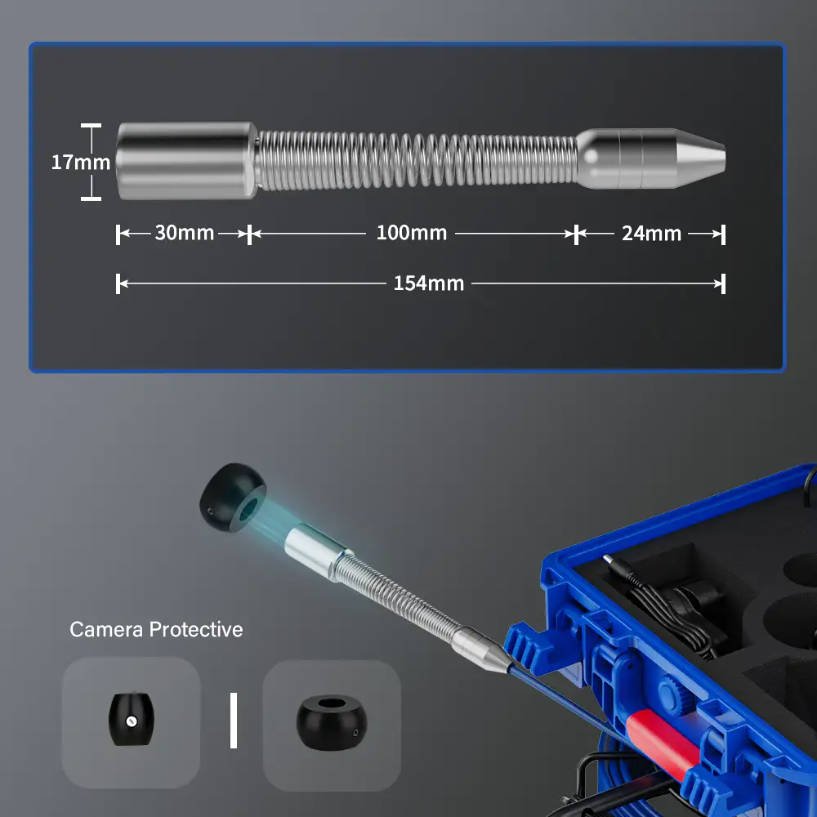

Camera Dimension & Protec Cover

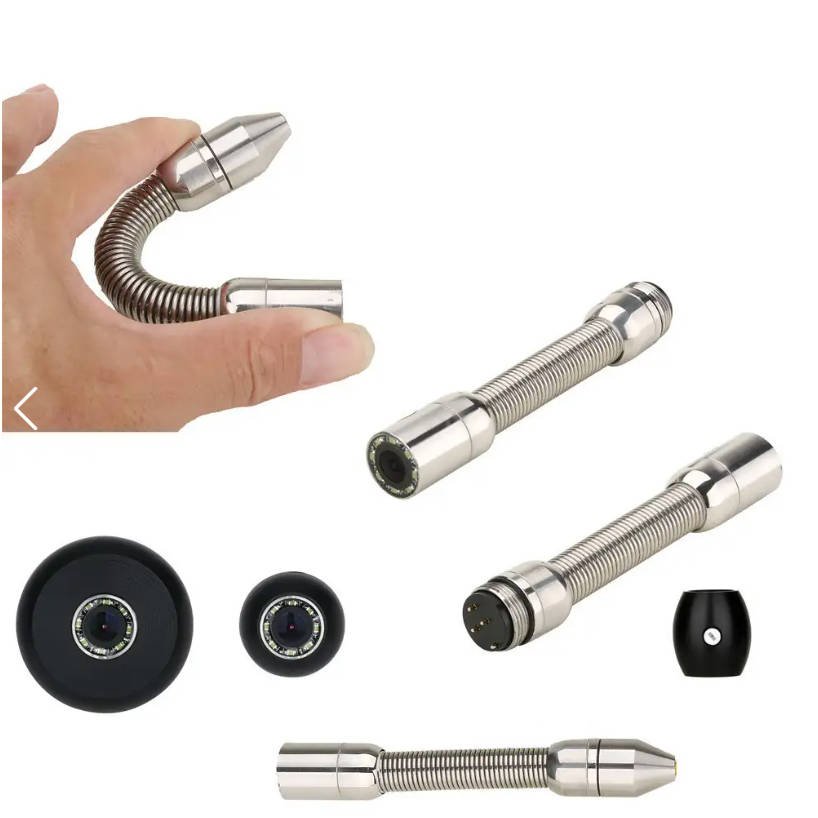

With camera protective cover 2 kinds

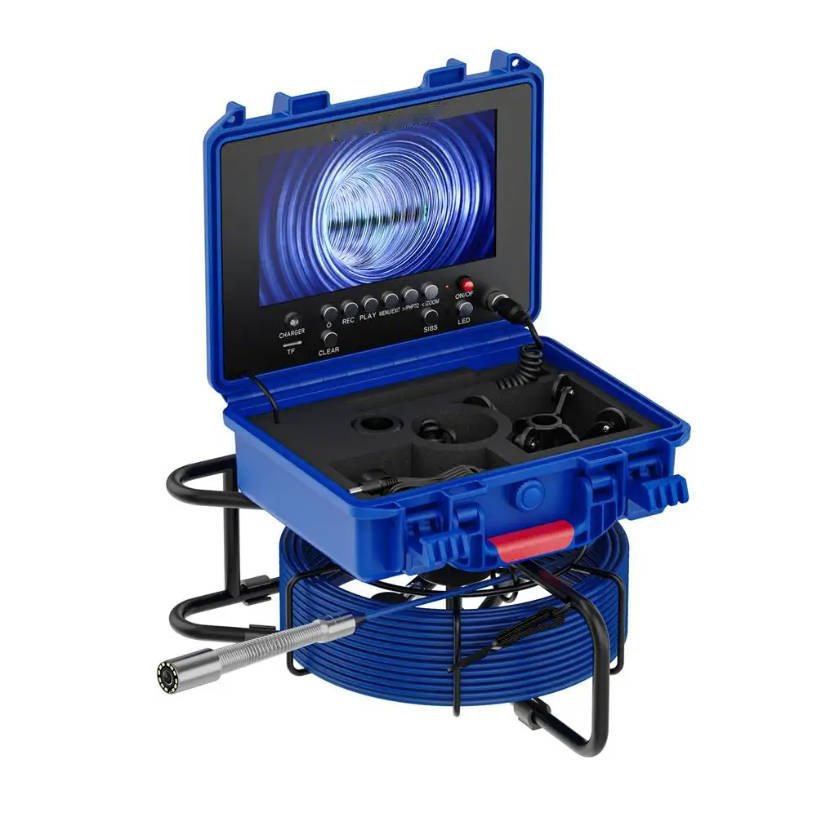

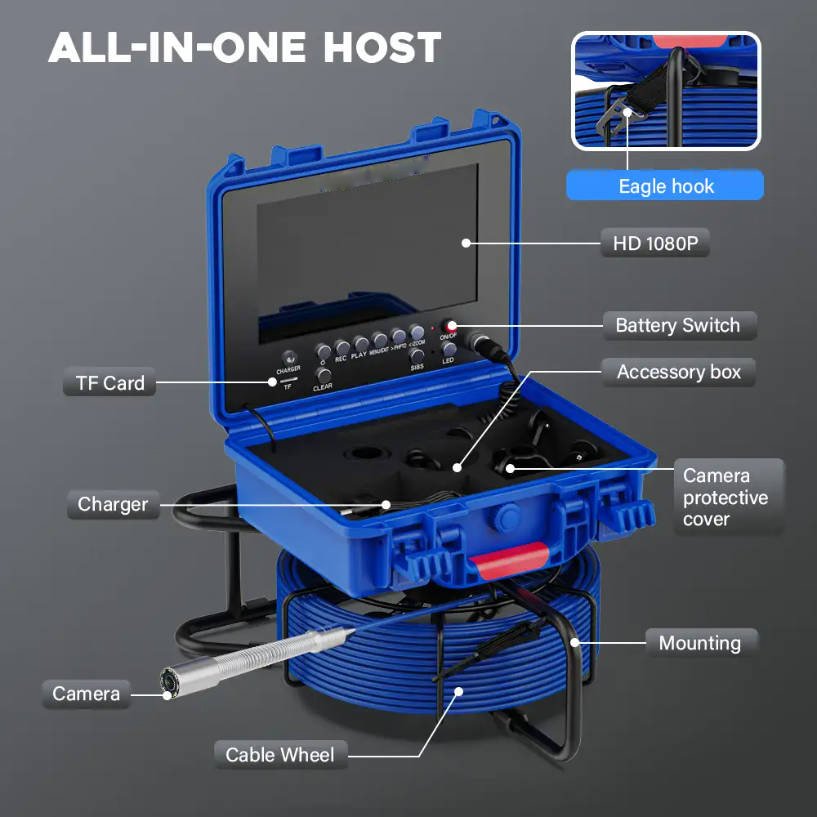

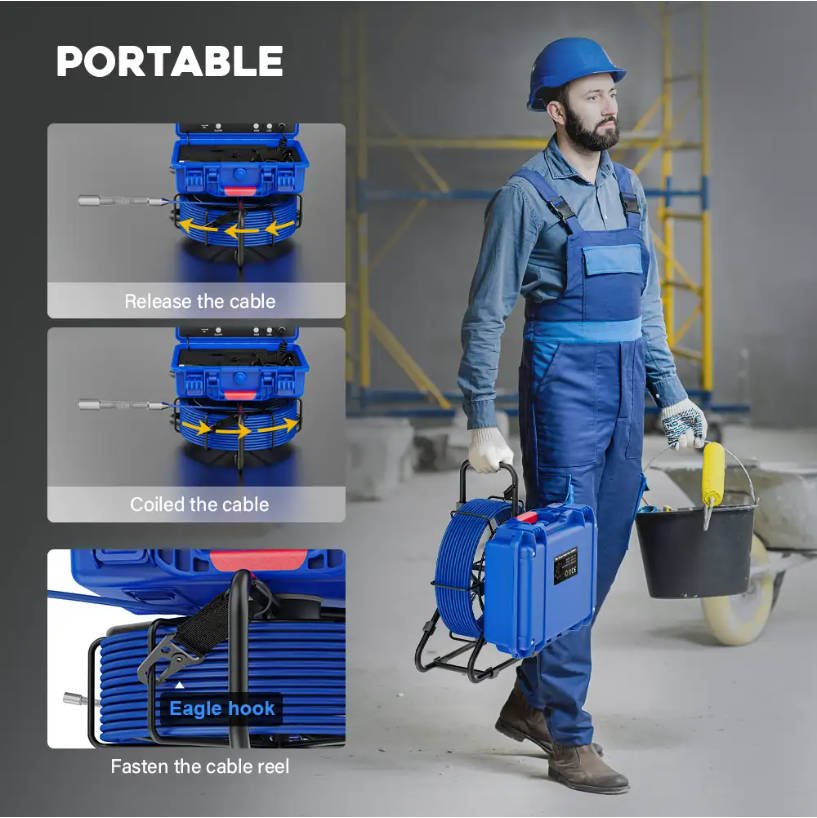

All in One
Main unit, wheel cable and camera, all in one case, easy to carry, instant settup.

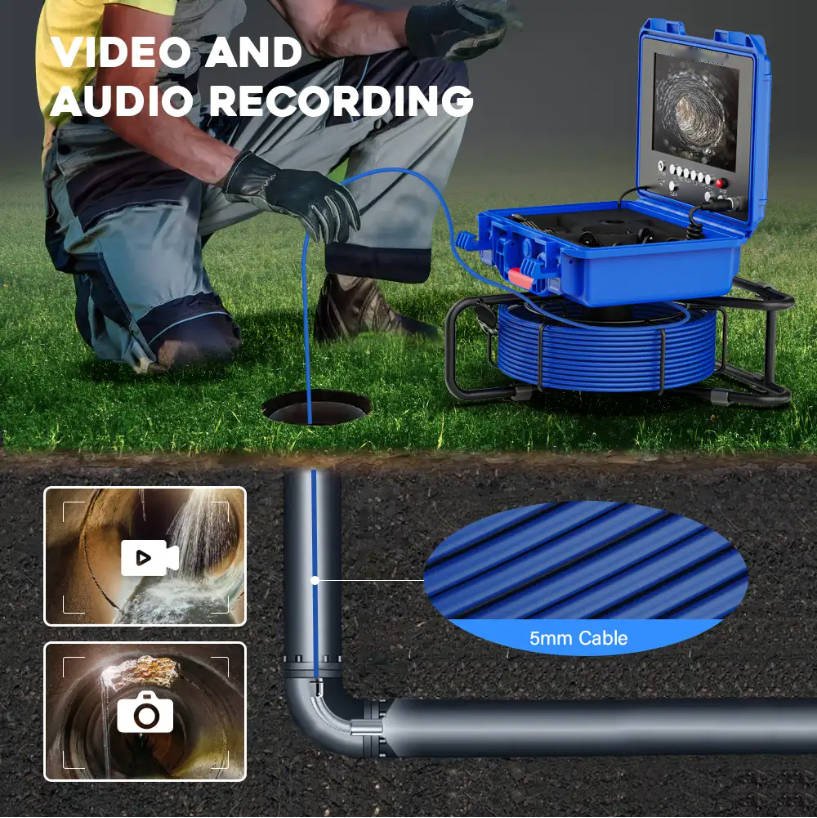

Video + Audio + 5X Image Enlarge
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times
Portable adjustable stand with battery
Comes with bracket and accessories box,more convenient to use. 12V 4500mAh lithium battery can work about 8 hours

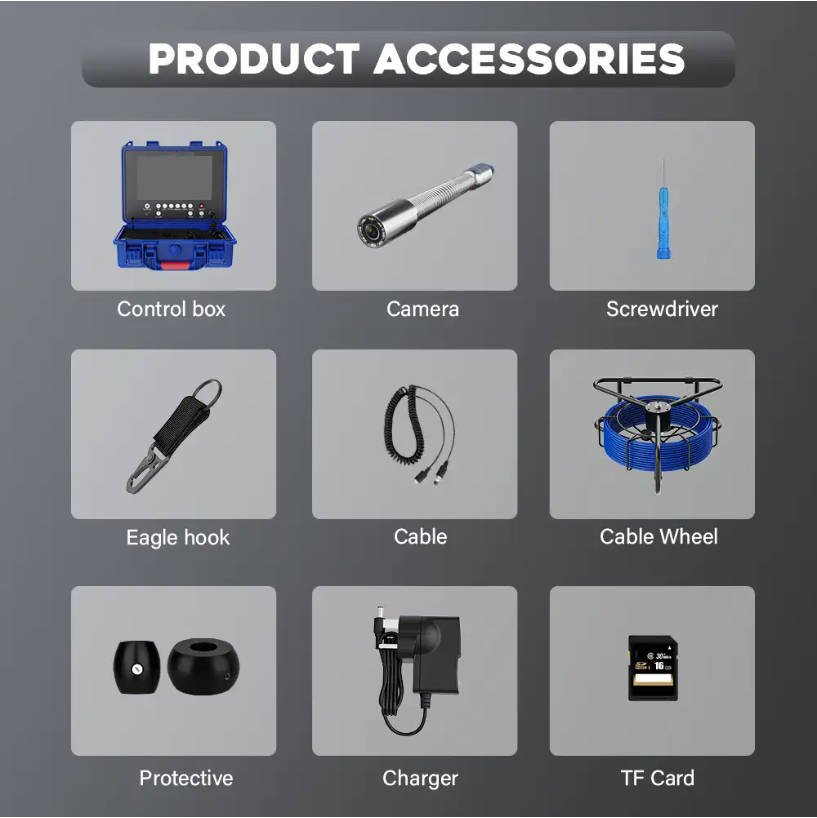

Main Unit & Accessories
Control box, camera, screwdriver, eagle hook, cable, cable wheel, protective, charger, and TF Card
Long Last Battery
12V 4,500mAh lithium battery can work about 8 hours
Certificate of Honor
Adhering to the business principle of mutual benefits, we have had a reliable reputation among ourcustomers because of our professional services, quality products and competitive prices.
Product Specifications
1.Monitor:9 inch IPS color record monitor with sun-visor for bright environment outside
2. TF Card: Memory Support maximum 128G TF card(16G TF card included)
4. Charger: AC100-240V DC12.6V
5.Battery: Luminal-cell arrester 4.5AH
6. Continuous use time for battery: approximate 8h
7. investigation depth: 20M( selectable line length)
8.material: fiber tube with /high intensity
9. Camera light source: 8 PCS LED with high while light(adjustable)
10. Camera viewing angle: 145°
11. Camera size/material: 17MM* 32MM /stainless steel
12. Camera protective cover parts size/material:25MM* 31MM /plastic-steel and 50MM* 31MM /plastic-steel
13. camera picture: color
Warmer Reminder: Partial button operation is suitable for rotate camera,if not rotate camera,some buttons are useless,please refer to the manual.
Package Contains
1 * 9 inch IPS Monitor（DVR+Built in 4500mah)
1 * Camera (17MM AHD 1080P )
1 * 16GB TF Card
1 * 20M Fiberglass Cable
2 * Camera Proof Cover
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
