7″ AHD Video Screen Sapphire Lens 23mm Diameter Stainless Steel Probe SRP70-D23
7” AHD video screen, sapphire lens, 23mm diameter stainless steel probe, HD 1080P, lens angle 145 degrees, 20m/30m/50m pipe borescope, 4,500mA built-in battery with power level display, 12 white lights, 2 types of protective cover with camera, send 16G card.
Models Available
| Name | Weight (kg) | Length (cm) | Width (cm) | Height (cm) |
|---|---|---|---|---|
| SRP70-D23-L20 | 7 | 43 | 35 | 22 |
| SRP70-D23-L30 | 8 | 43 | 35 | 22 |
| SRP70-D23-L50 | 9 | 43 | 35 | 22 |
SEWER CAMERA
SRP70-D23
7” AHD video screen, sapphire lens, 23mm diameter stainless steel probe, HD 1080P, lens angle 145 degrees, 20m/30m/50m pipe borescope, 4,500mA built-in battery with power level display, 12 white lights, 2 types of protective cover with camera, send 16G card.
Product Features

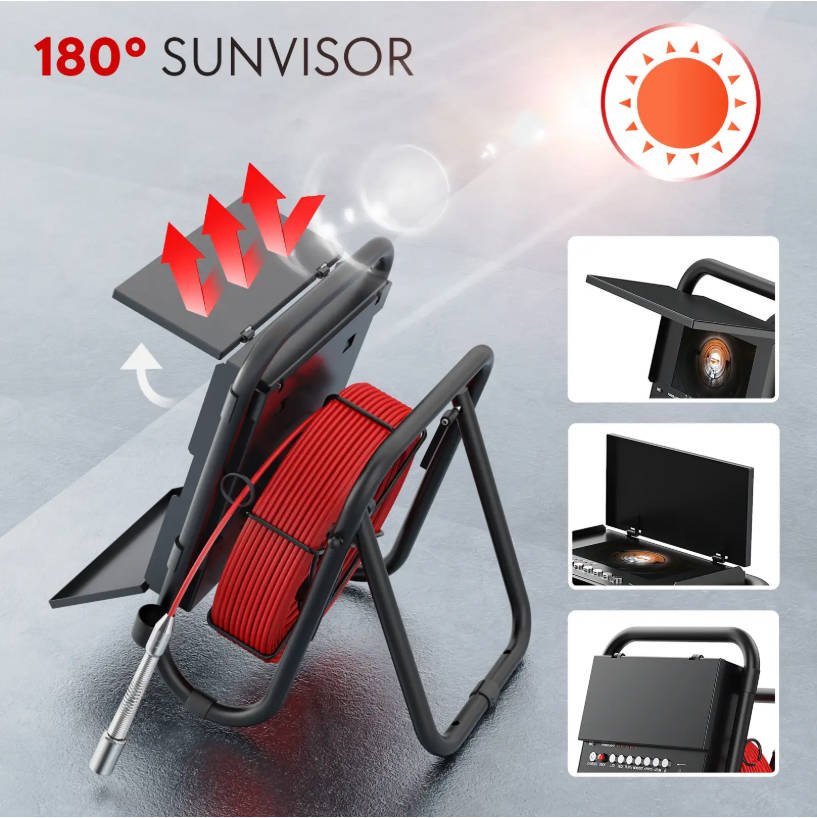

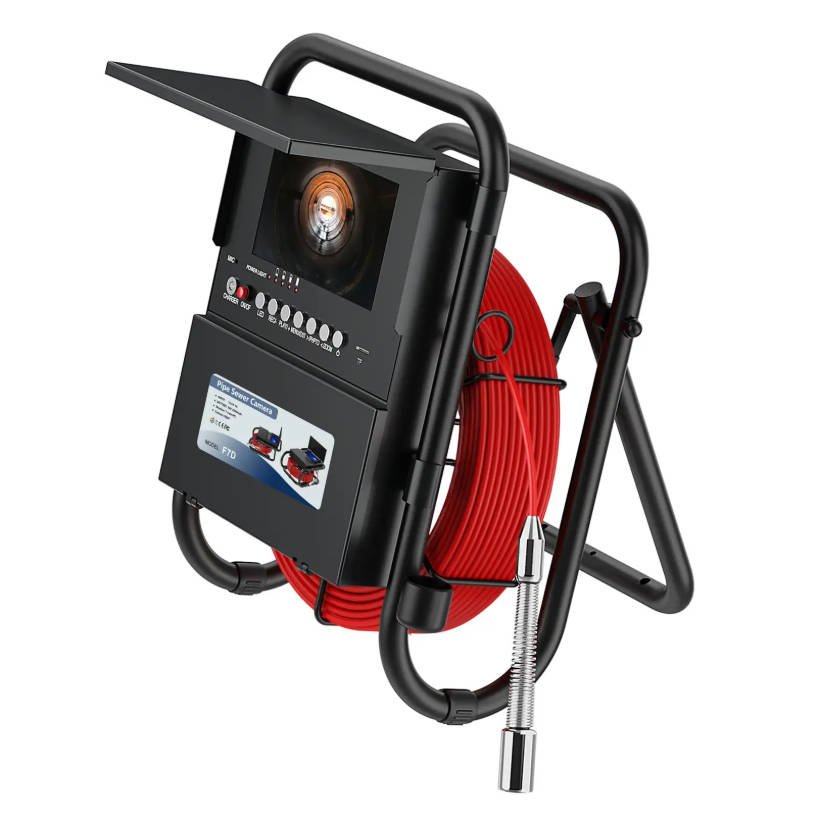

180° Sun visor
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 7 inches color IPS LCD monitor with a sun-visor for outdoor inspections.
7 Inch Electronic Zoom Monitor Audio/Video Recording
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB SD card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)

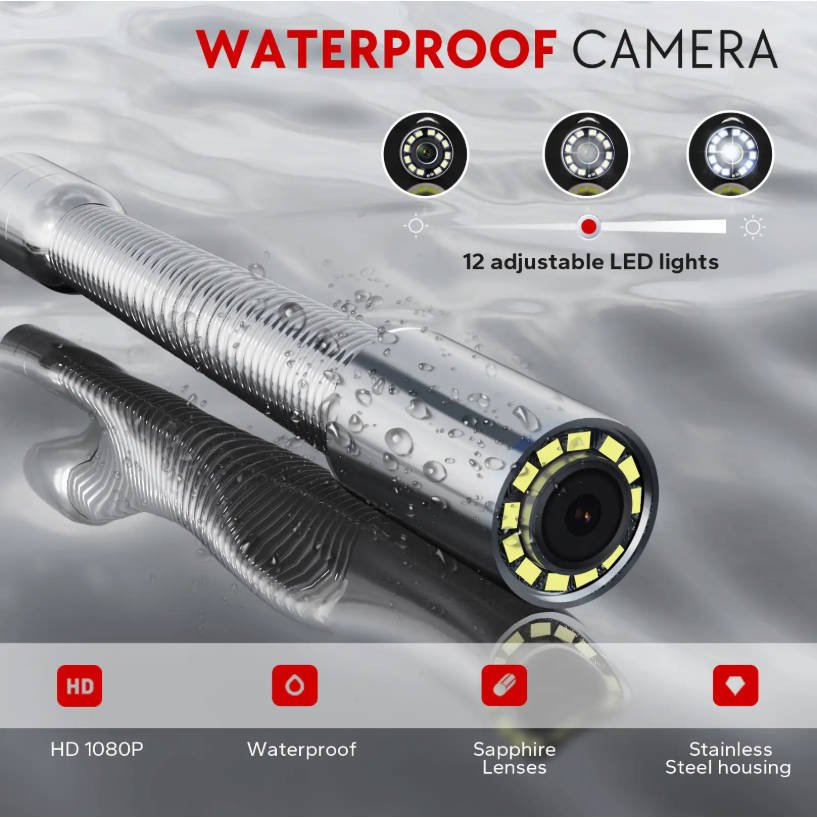

Waterproof & Night Vision
IP68 waterproof, with 12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area. Inspections will be seen more clearly in the dark environment.

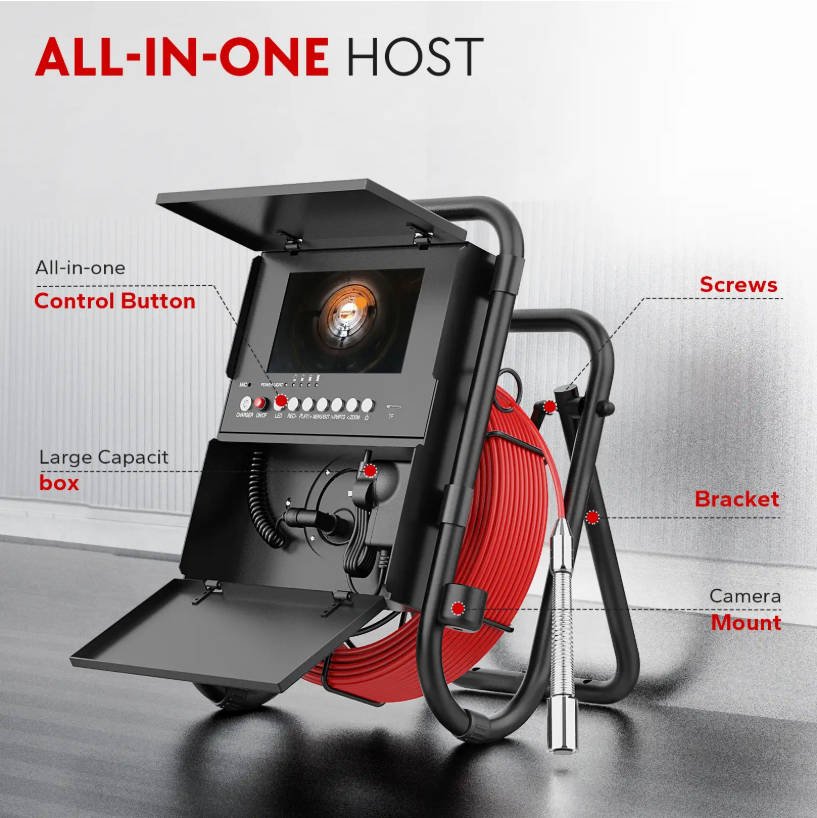

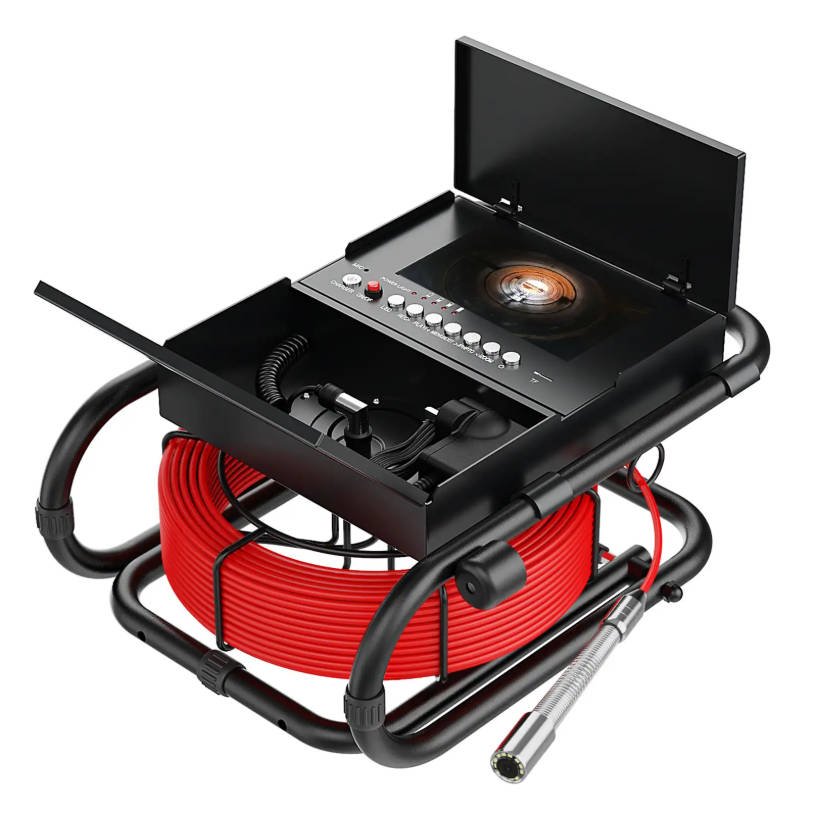

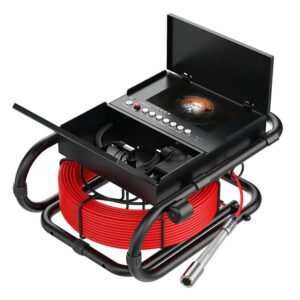

All in One
Full function and easy to carry.
Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.

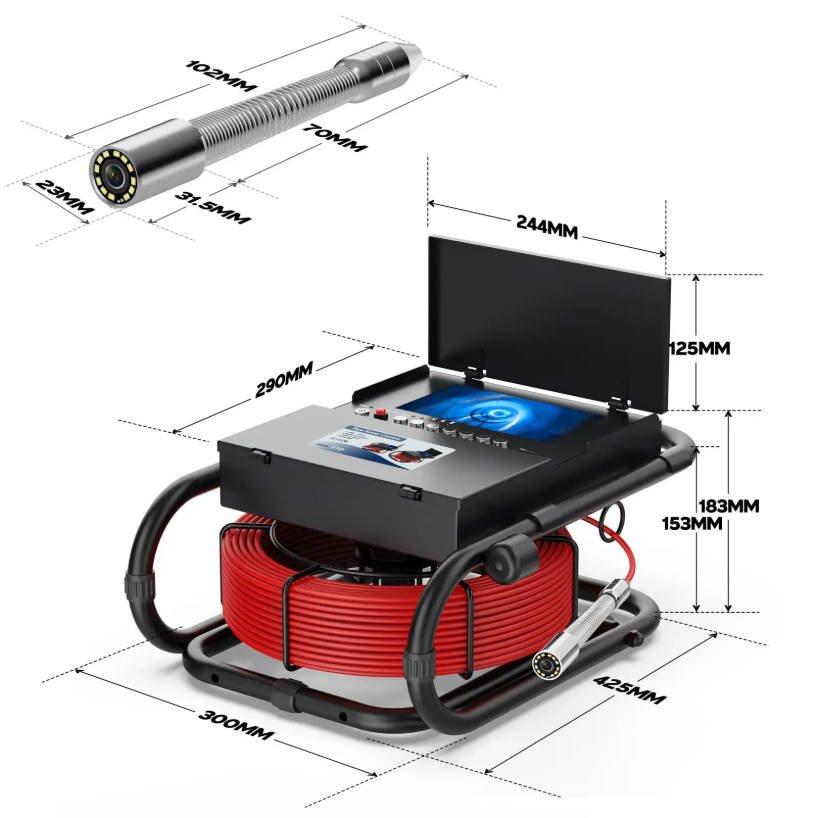

Dimension
Welcome to contact us for OEM/ODM services

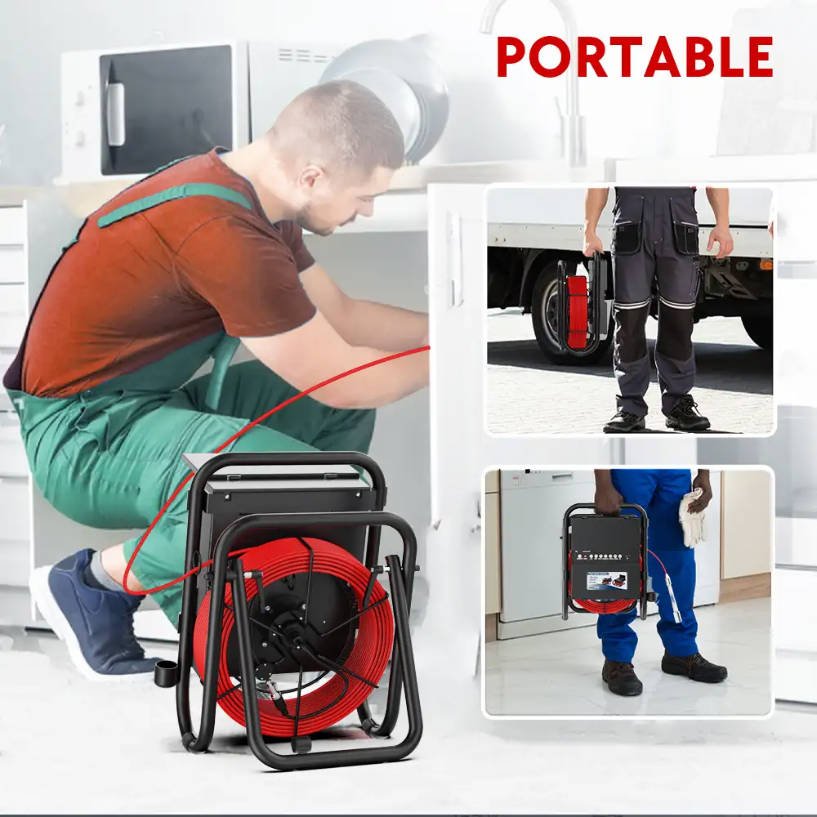

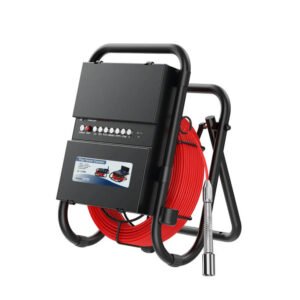

Light Weight and Portable
Compact size and just several kg, easy to carry with.

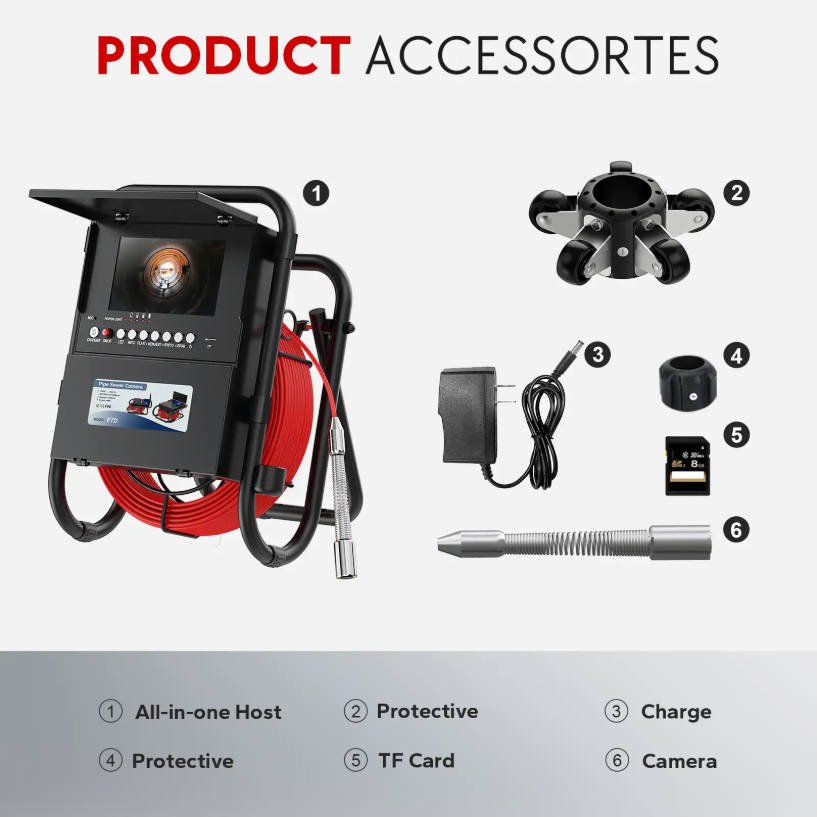

Main Unit & Accessories
All-in-one host, protective, charge, protective, TF Card, camera
Portable adjustable stand with battery
Comes with bracket and accessories box,more convenient to use. 5,000mAh lithium battery can work about 6 hours.
Certificate of Honor
Adhering to the business principle of mutual benefits, we have had a reliable reputation among ourcustomers because of our professional services, quality products and competitive prices.
Product Specifications
1. Monitor:7 inch IPS color record monitor with sun-visor for bright environment outside
2. TF Card: Memory Support maximum 128G TF card(16G TF card included)

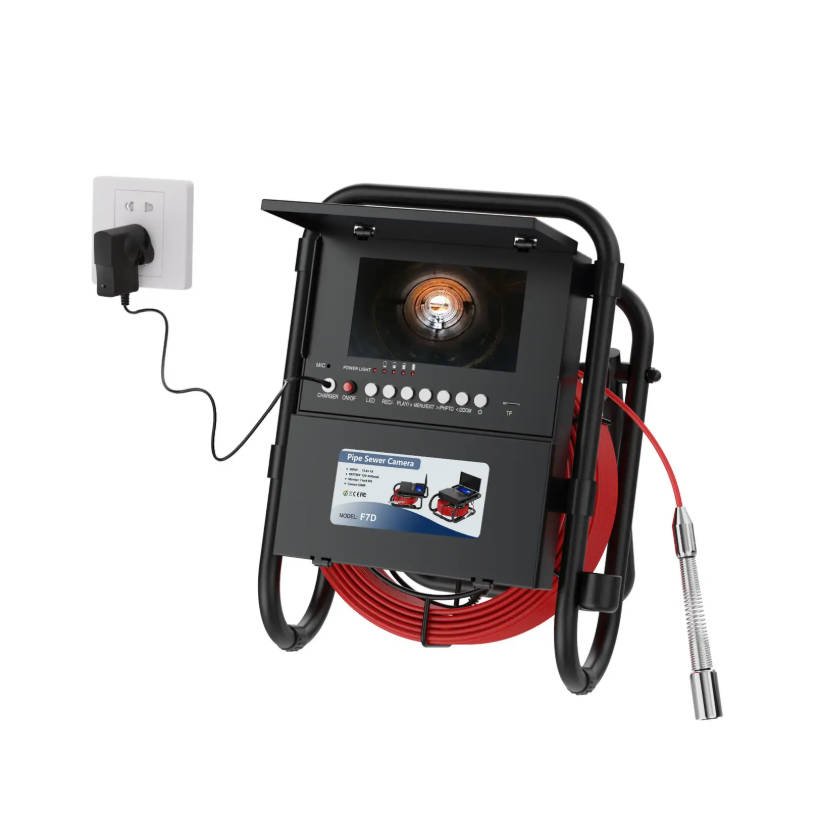

3. Charger: AC100-240V DC12.6V
4. Battery: Luminal-cell arrester 4.5AH
5. Continuous use time for battery: approximate 8h
6. Investigation depth: 20m( selectable line length)
7. Material: fiber tube with /high intensity
8. Camera light source: 12 PCS LED with high while light(adjustable)
9. Camera viewing angle: 145°
10. Lens Mirror Material : Sapphire

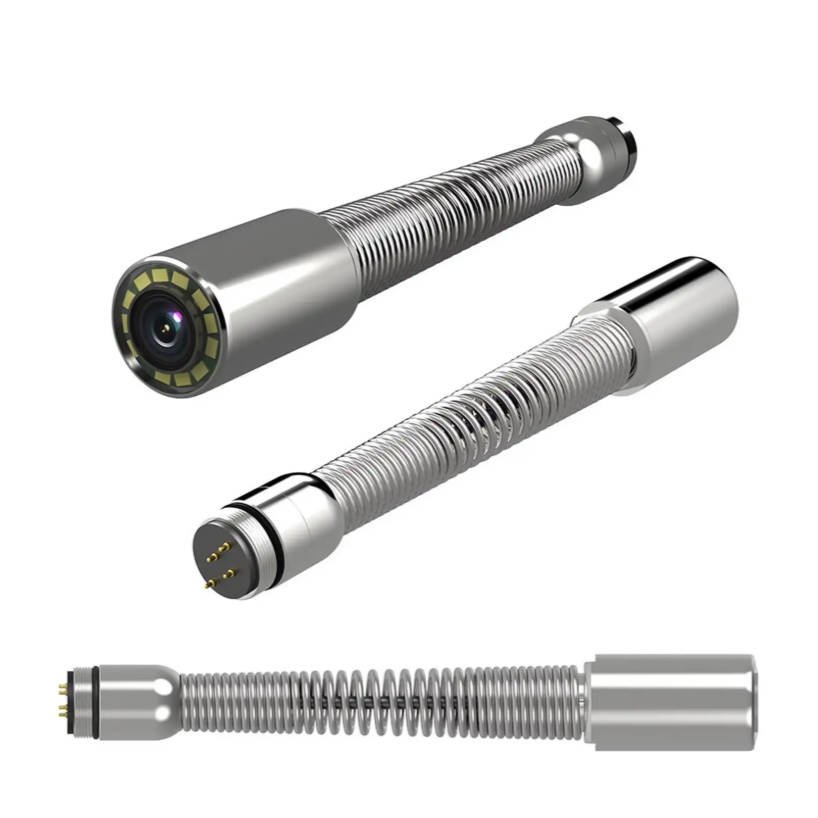

11. Camera size/material: 23mm* 40mm /stainless steel
12. Camera protective cover parts size/material:38mm* 28mm /plastic-steel
13. Camera protective cover parts size/material:99mm* 28mm /plastic-steel
14. Camera picture: color.
Package Contains
1 * 7inch IPS Monitor（DVR+Built in 4500mah)
1 * Camera (AHD 1080P 23mm )
1 * 16GB TF Card
1 * 20M Fiberglass Cable
2 * Camera Proof Cover
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
