Sewer Pipe Endoscopic System 10” HD IPS Monitor 1080P AHD Camera SRP100-D3209
10 inch HD IPS monitor, resolution: 1024*600
Clarity: 1080P AHD camera
Camera diameter: 32MM stainless steel shell, sapphire lens.
LED: 24 pcs Brightness can be adjusted
Battery: Li-ion 18650, 12V 4,500mAH, continuous about 6 hours
Waterproof grade: IP68
Accessories: including display + keyboard + battery + control board + adapter + manual + protective cover 1 kind + screwdriver + manual, frame (including meter + fiber cable diameter 9MM + interface)
With video, audio, photo, meter meter, clock, keyboard input.
Models Available
| Name | Weight (kg) | Length (cm) | Width (cm) | Height (cm) |
|---|---|---|---|---|
| SRP100-D3209-L50 | 25 | 69 | 39 | 73 |
| SRP100-D3209-L80 | 28 | 69 | 39 | 73 |
| SRP100-D3209-L100 | 30 | 69 | 39 | 73 |
SEWER CAMERA
SRP100-D3209
10 inch HD IPS monitor, resolution: 1024*600
Clarity: 1080P AHD camera

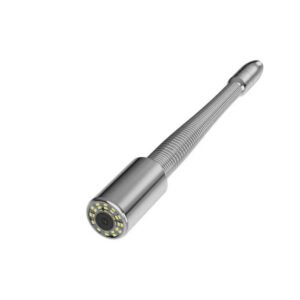

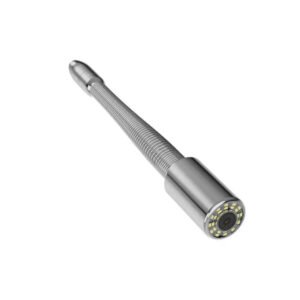

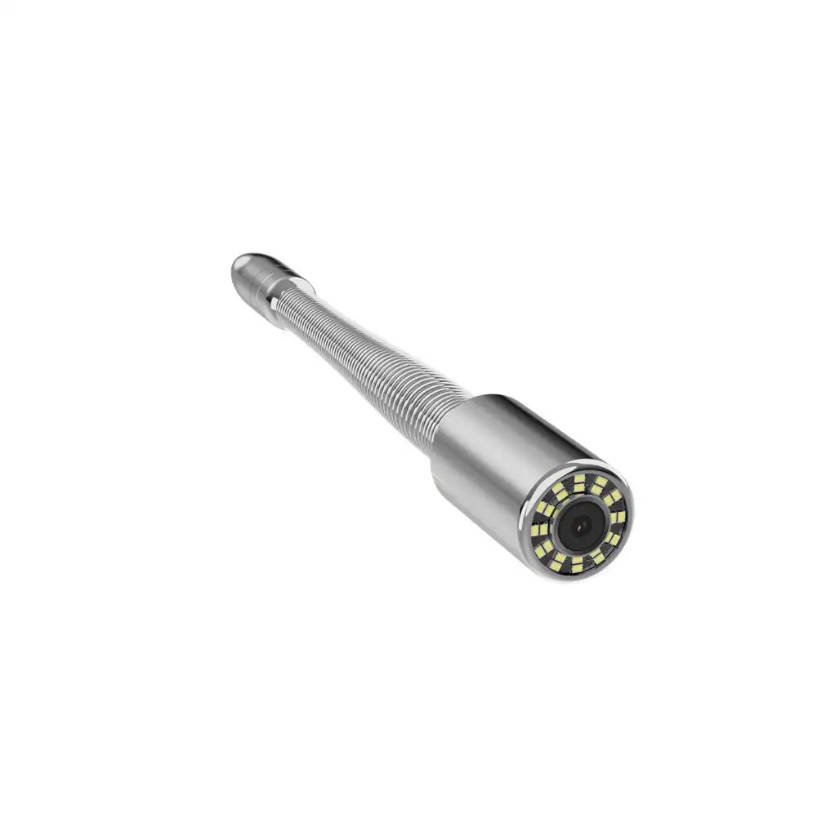

Camera diameter: 32MM stainless steel shell, sapphire lens.
LED: 24 pcs Brightness can be adjusted
Battery: Li-ion 18650, 12V 4,500mAH, continuous about 6 hours
Waterproof grade: IP68
Accessories: including display + keyboard + battery + control board + adapter + manual + protective cover 1 kind + screwdriver + manual, frame (including meter + fiber cable diameter 9MM + interface)
With video, audio, photo, meter meter, clock, keyboard input.
Product Features
Keyboard Input
Can input text info/symbols to mark events during work

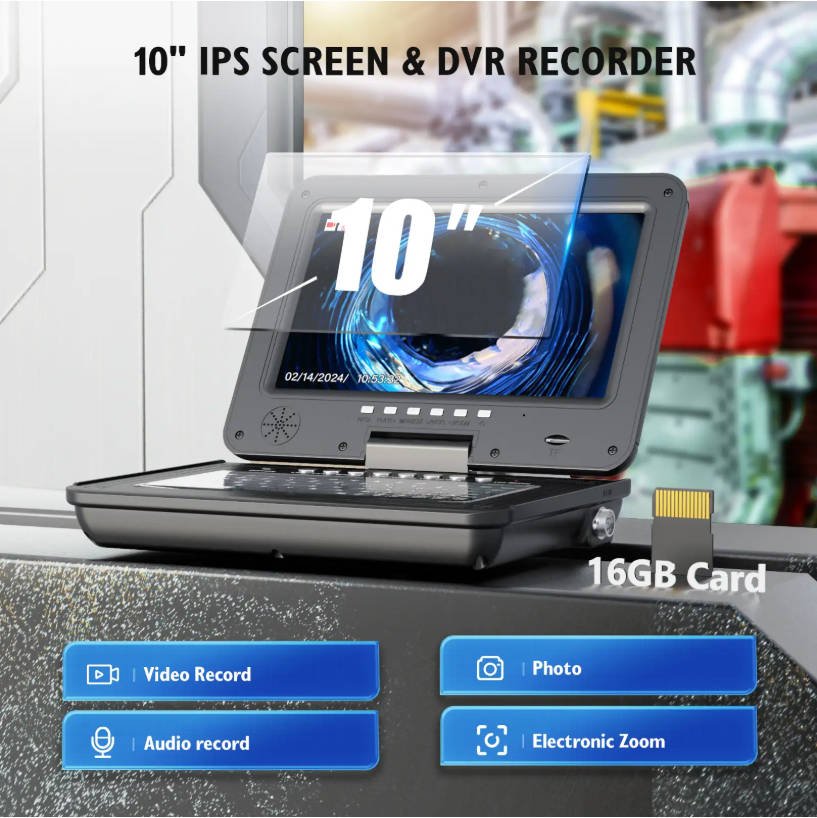

10 Inch IPS & A/V Recording
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10 inches color IPS LCD monitor.
Video + Audio + 5X Image Enlarge:
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

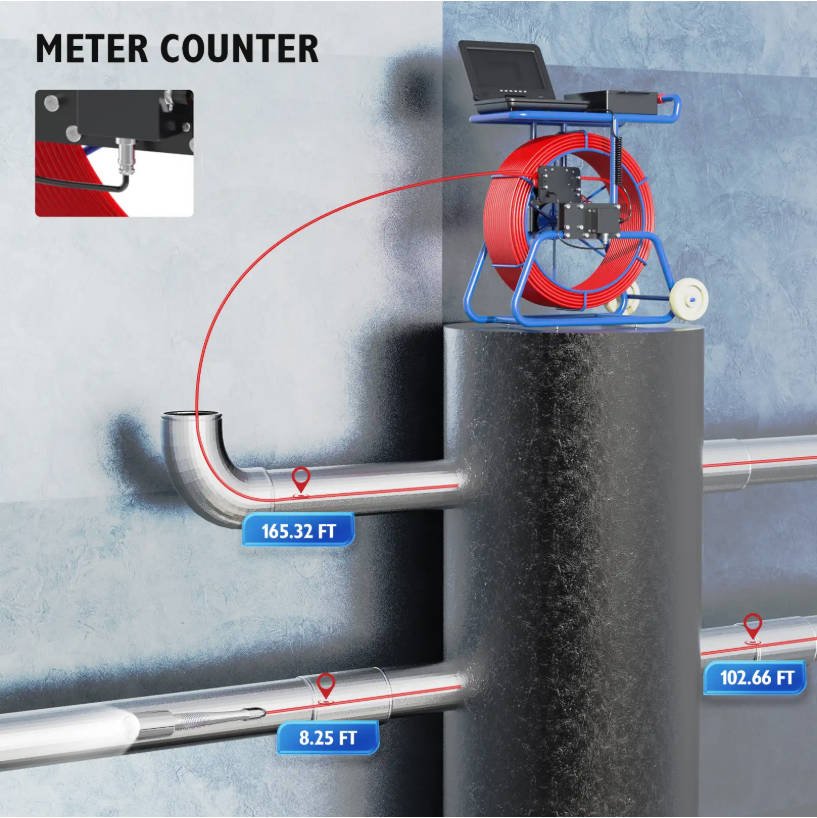

Meter Counter
Simultaneous display/cleared Metric and Feet.

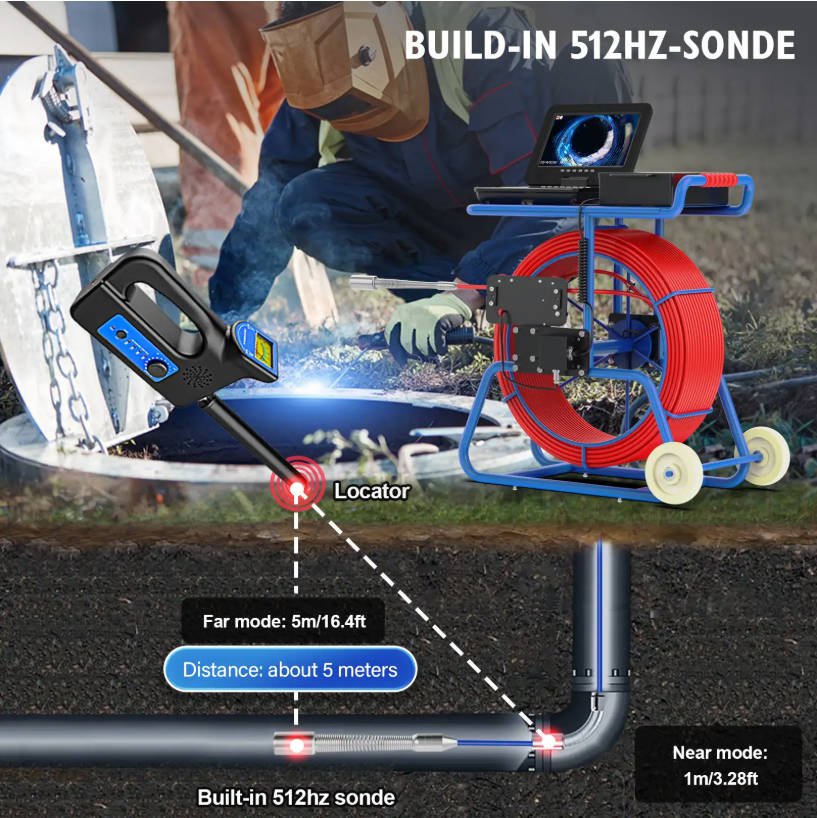

512HZ TRANSMITTER
This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground. （Locator Receiver is NOT included）
Waterproof & Night Vision
IP68 waterproof, with 12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area. Inspections will be seen more clearly in the dark environment.
Self-leveling Camera
Provide upgright images at all times, even when the camera is tilted

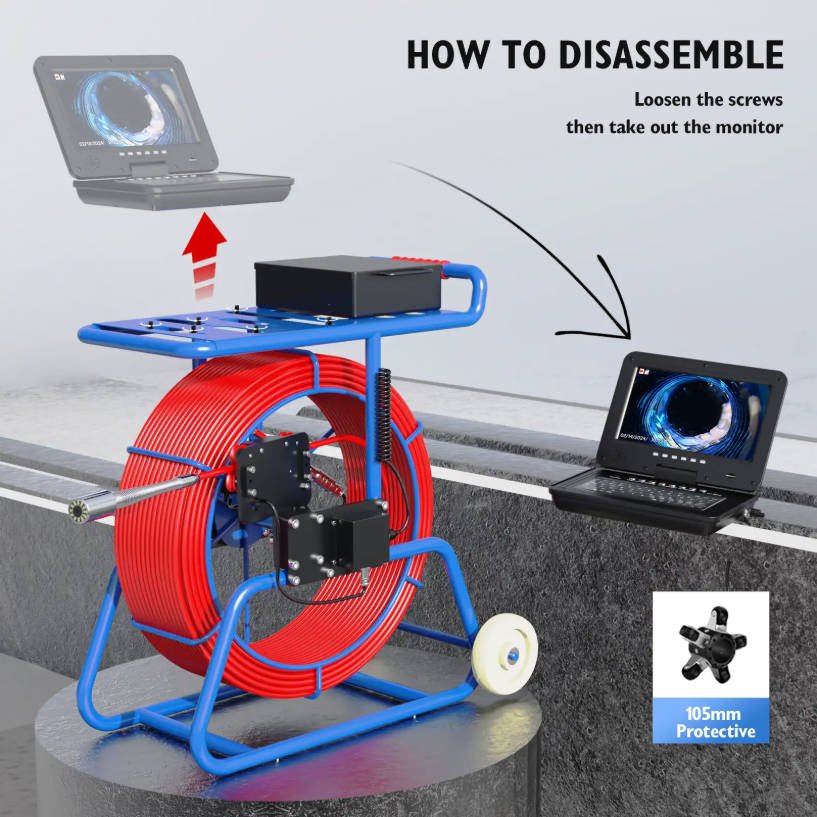

How to Disassemble Minitor
Loose the screws and take out the monitor
Unit Dimension & How to Use the Cable
The upgraded cable is more flexible than the previous version. However, it should not be bent at a 90-degree angle, as this may damage the cable. The cable is made with a 5 mm diameter fiberglass rod, offering excellent corrosion resistance, cold resistance, and tensile strength.

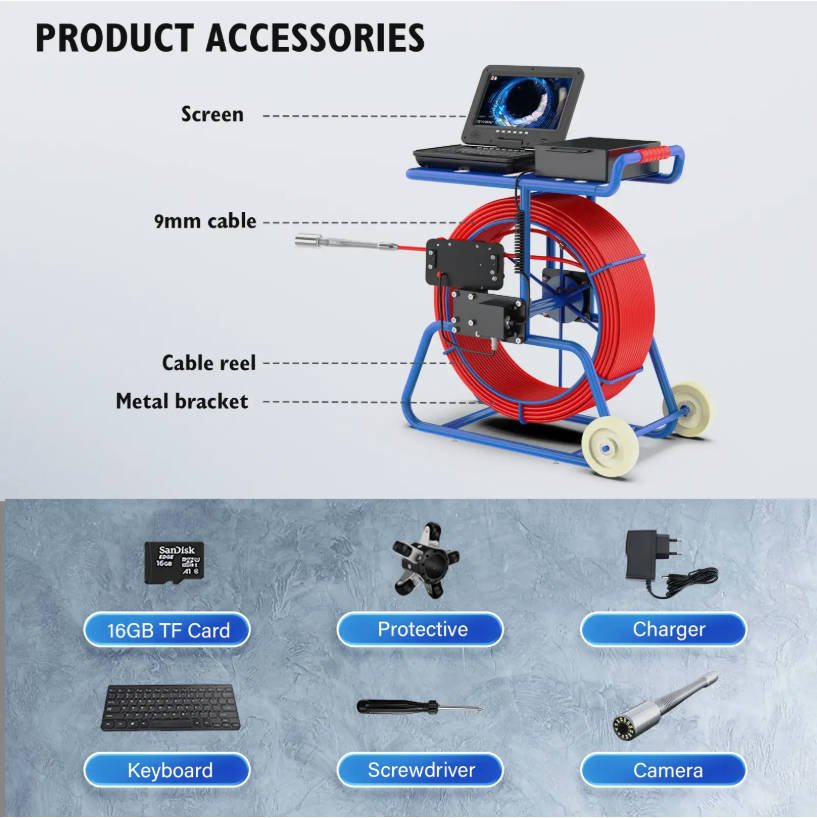

Product & Accessories
Main unit, cable wheel, 16G TF card, protective, charger, keyboard, screwdriver & camera.
Long Last Battery
12V 4,500mAh lithium battery can work about 8 hours
Certificate of Honor
Adhering to the business principle of mutual benefits, we have had a reliable reputation among ourcustomers because of our professional services, quality products and competitive prices.
Product Specifications
1. Monitor:10 inch IPS color record monitor ,The monitor can be viewed at any angle of 180 degrees, also can be viewed at an angle of 180 degrees from left to right
2. TF Card: Memory Support maximum 128G TF card(16G TF card included)
3. Keyboard input (USB Port)
4. 512hz:Built in 512hz transmitter
5. Camera :Auto Self Leveling AHD 1080P
6. Image Zoom : Press > key to zoom the image from 0 to 5 times.
7. Charger: AC100-240V DC12.6V
8. Battery: Luminal-cell arrester 4.5AH
9. continuous use time for battery: approximate 8h
10. investigation depth: 50M( selectable line length)
11. material: fiber tube with /high intensity
12. camera light source: 24 PCS LED with high while light(adjustable)
13. camera viewing angle: 105°
14. Lens Mirror Material : Sapphire
15. camera size/material: 32MM* 59MM /stainless steel

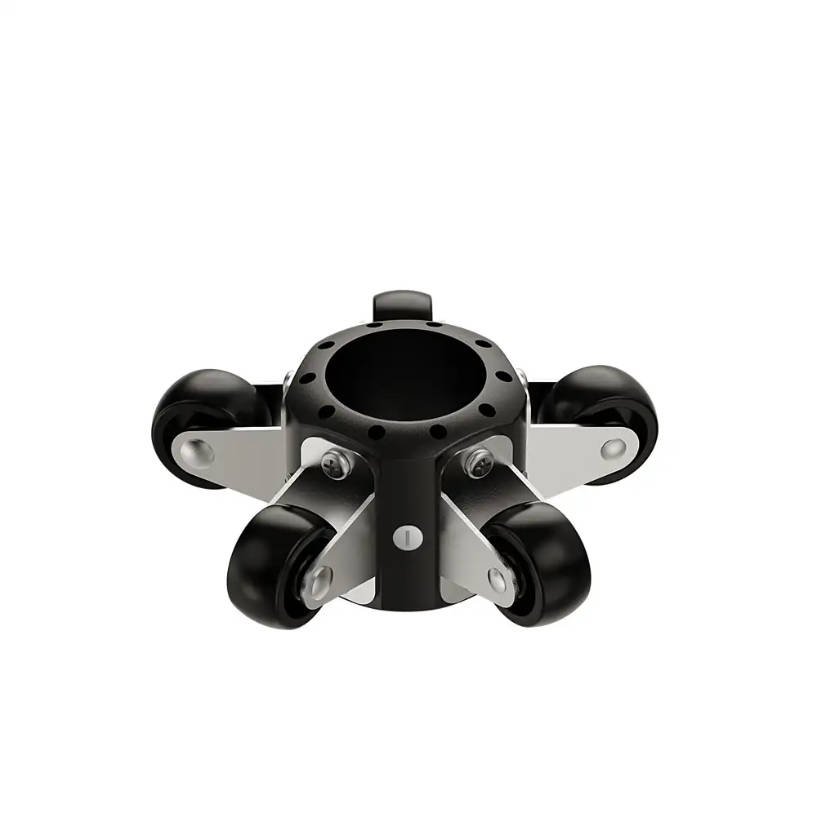

16. camera protective cover parts size/material:105MM* 45MM /plastic-steel with wheel
Package Contains
1 * 10inch IPS Monitor（DVR)
1 * Camera (AHD 1080P Auto Self Leveling )
1 * 16GB TF Card
1 * 50M Fiberglass Cable
1 * Camera Proof Cover
1 * 4500mah Battery Box
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
